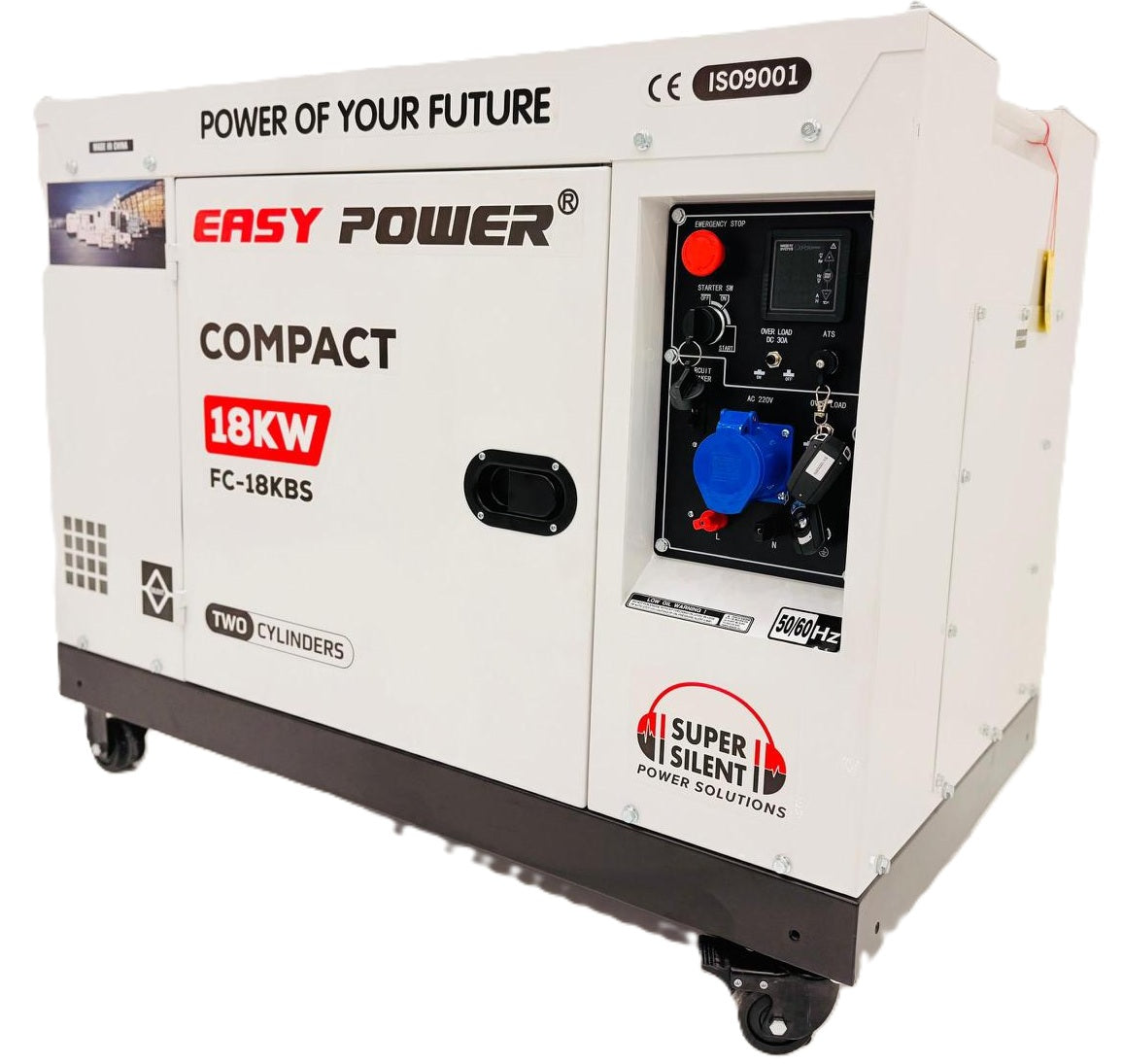

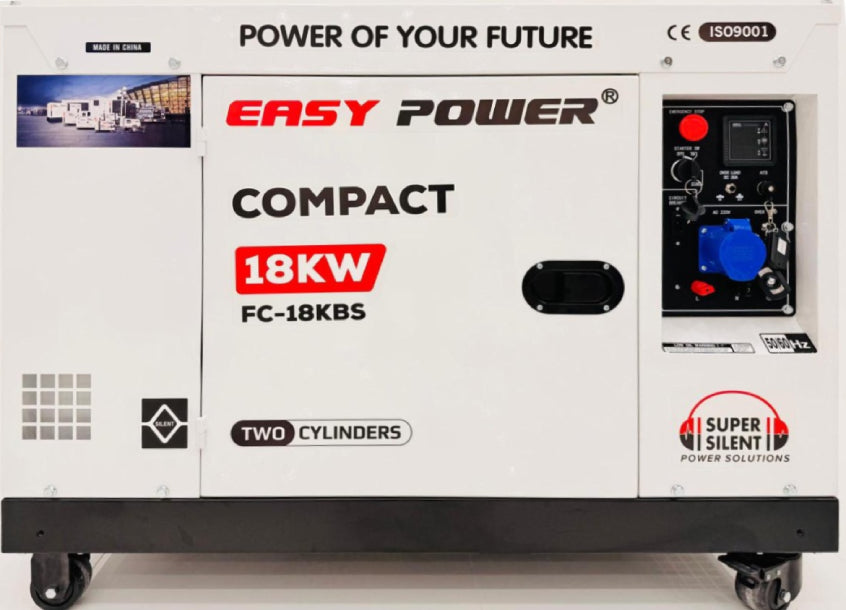

FC-18KBS 18 kW Silent Diesel Generator
Experience robust and reliable power with the FC-18KBS Open Frame Diesel Generator, engineered for industrial, commercial, agricultural, and emergency backup applications across the UAE and the broader GCC region (Saudi Arabia, Kuwait, Qatar, Bahrain, Oman). Powered by a powerful HD2V95F V-twin double-cylinder, air-cooled diesel engine with 1.247L displacement, this generator delivers up to 17kW (50Hz) and 20kW (3000 RPM) of reliable power. Featuring a self-exciting alternator with AVR (Automatic Voltage Regulation) for stable power output, F-class insulation, and compatibility with both single and three-phase connections, it's perfect for construction sites, workshops, farms, and backup power across the Arabian Peninsula. With a large 25L fuel tank providing 6.5 hours of runtime at full load, electric start system, and a heavy-duty open frame design, this generator is built to withstand demanding environments.
Highlights
- 🔧 Powerful V-Twin Diesel Engine – HD2V95F V-twin double-cylinder, air-cooled diesel engine with 95x88mm bore/stroke, 1.247L displacement, and 20:1 compression ratio for maximum durability and efficiency across GCC industrial sites.
- ⚡ High Power Output – Delivers 15-16kW rated power (50Hz) with 0.8 power factor, offering both single and three-phase connectivity for versatile applications on construction sites, farms, and factories.
- 🛡️ Stable Power with AVR – Self-exciting alternator with built-in AVR (Automatic Voltage Regulation) and F-class insulation ensures stable, clean power for sensitive equipment and tools.
- ⛽ Extended Runtime & Fuel Efficiency – Large 25L fuel tank provides 6.5 hours of continuous operation at full load with excellent fuel consumption of ≤340 g/kWh, reducing operational costs.
- 🚀 Easy Electric Start – Features electric start system for effortless ignition, making it convenient for daily use across remote work sites and emergency backup scenarios.
- 🏗️ Robust & Portable Design – Open frame heavy-duty construction with overall dimensions of 1175 x 701 x 925 mm and gross weight of 302 kg, built for demanding industrial environments.
Specifications
| Brand |
Easy Power |
Model No. |
FC-18KBS |
| Frequency (50Hz) |
3000 RPM |
Frequency (60Hz) |
3600 RPM |
| Rated Voltage |
220V / 380V |
No. of Cylinders |
2 |
| Max Power |
18 kW |
Rated Power |
17 kW |
| Power Factor |
1/0.8 |
No. of Phases |
Single / Three Phase |
| Excitation Way |
Self-Exciting with AVR |
Insulation Class |
F |
| Pole Number |
2 |
Engine Model |
HD2V95F |
| Engine Type |
V-Twin Double Cylinder, Air-Cooled |
Bore x Stroke |
95 x 88 mm |
| Total Displacement |
1.247 L |
Compression Ratio |
20:1 |
| Rated Power (3000 RPM) |
20 kW |
Rated Power (3600 RPM) |
21 kW |
| Fuel Type |
Diesel (0# Summer / -10# Winter) |
Lube Oil |
SAE10W30 (CD Grade Above) |
| Fuel Consumption |
≤340 g/kWh |
Fuel Tank Capacity |
25 Litres |
| Working Time at Full Tank |
6.5 Hours |
Noise Level (at 7m) |
75 dB(A) |
| Starting System |
Electric Start |
Structure Type |
Open Frame / Silent (as specified) |
| Overall Length |
1175 cm |
Overall Width |
701 cm |
| Overall Height |
925 cm |
Gross Weight |
302 kg |
|
