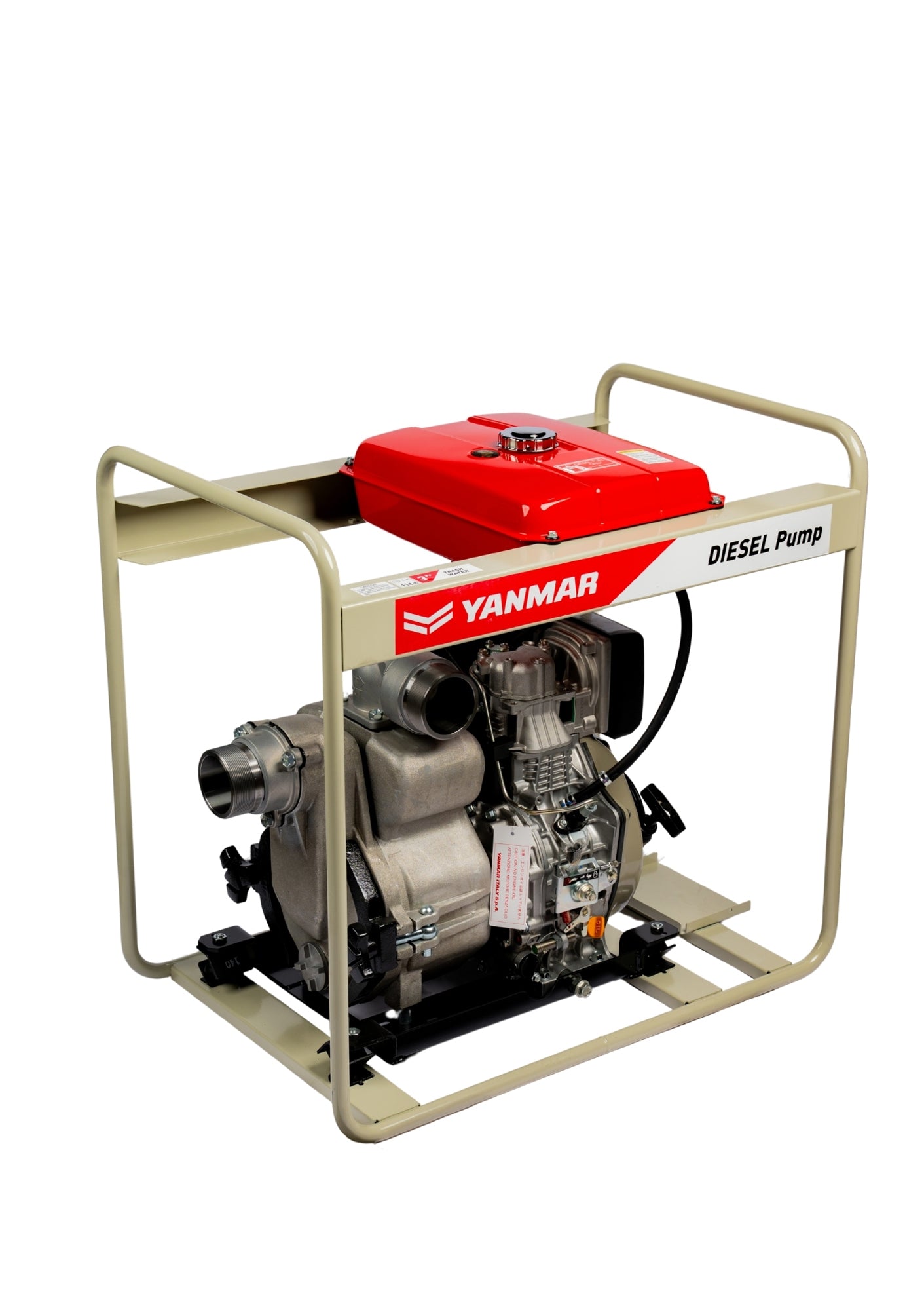

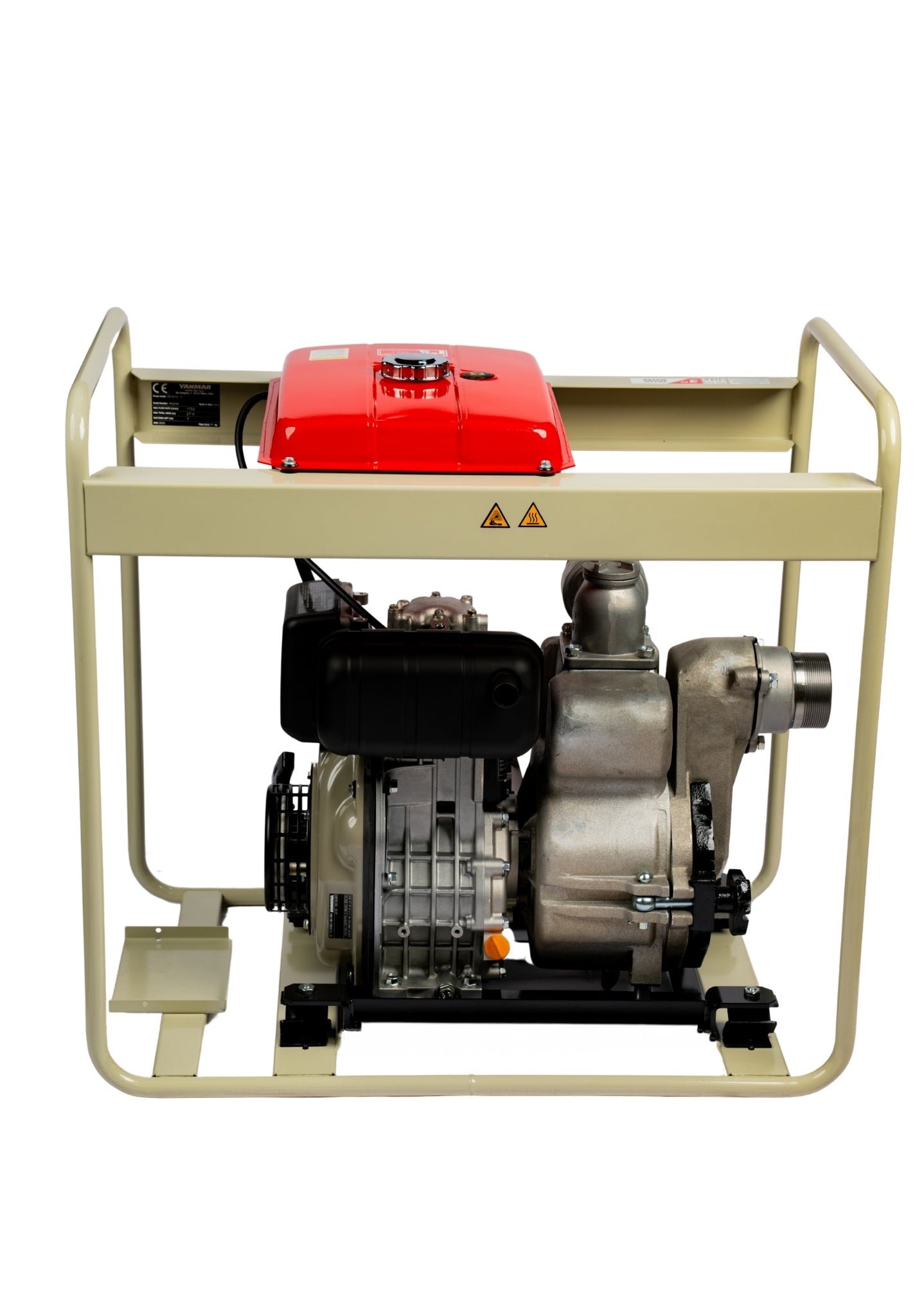

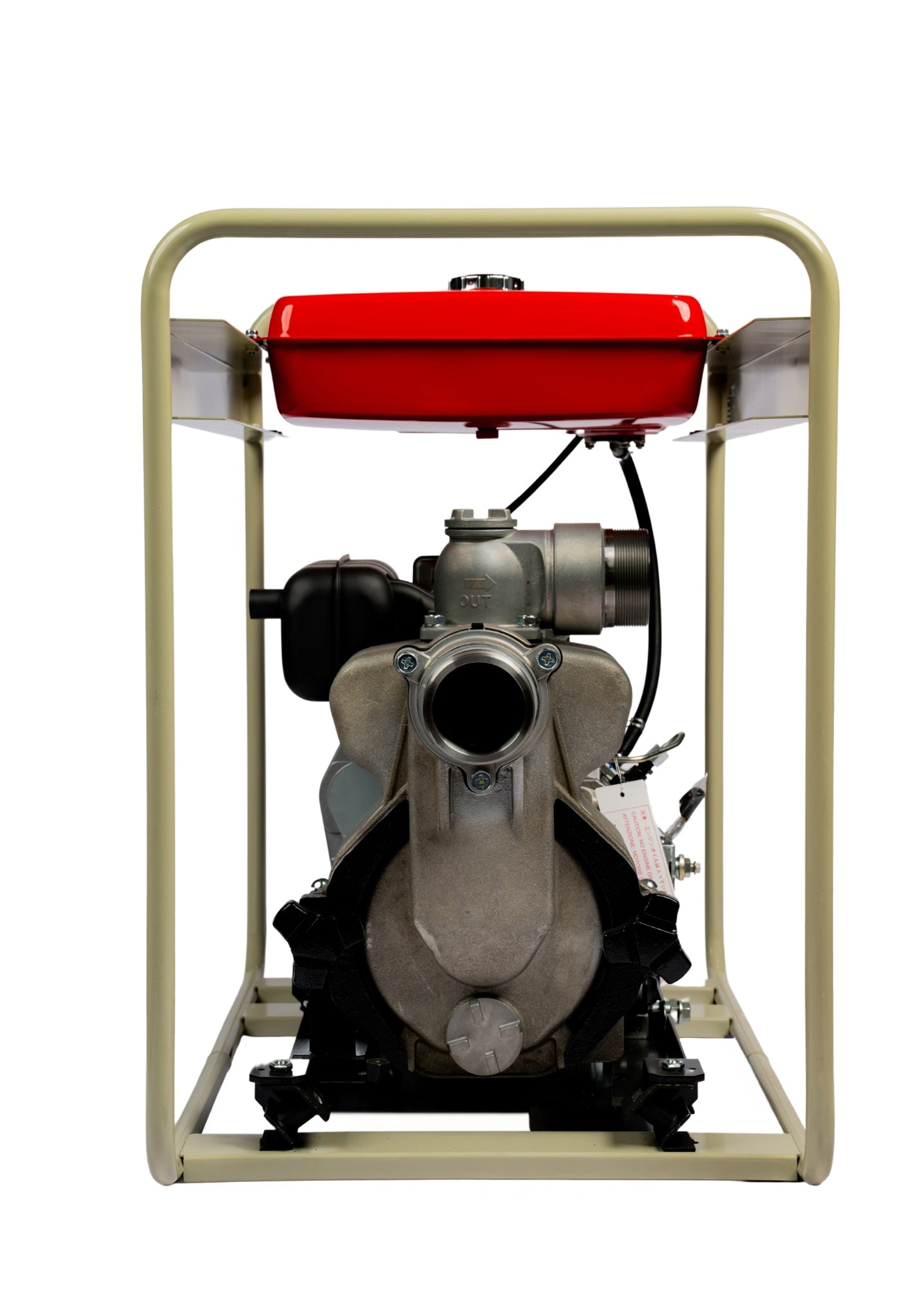

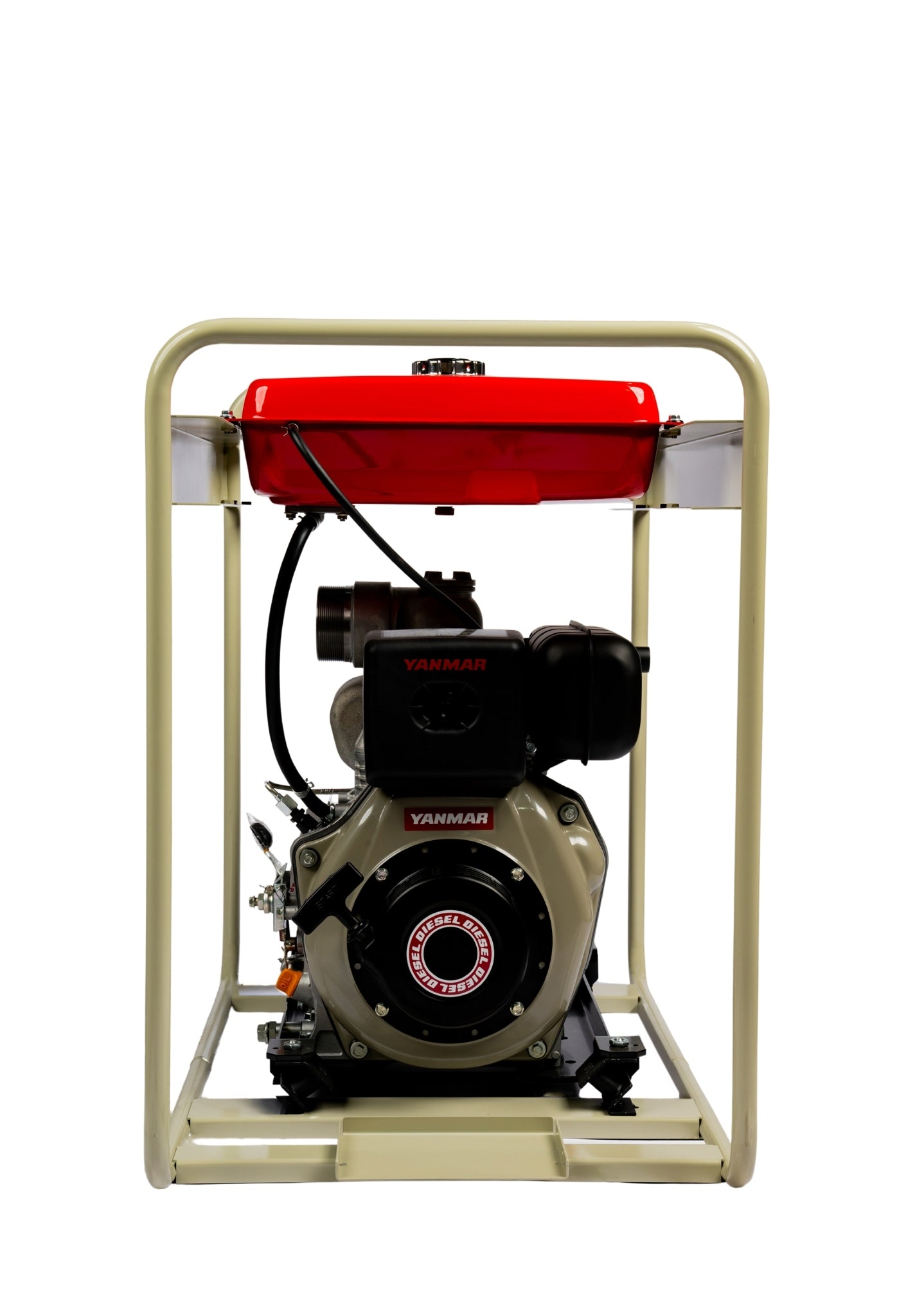

YANMAR YDP30TN DIESEL TRASH WATER PUMP 3x3

The YANMAR YDP30TN is a portable, rugged diesel-powered trash (debris-laden) water pump built for demanding dewatering tasks. With 3-inch suction and discharge ports, it’s designed to handle trash water—water containing grit, sand, or debris—making it ideal for construction, flood control, mining, and other harsh environments.

The pump is powered by a Yanmar L-series 4-stroke, air-cooled diesel engine, providing a good balance of performance, fuel efficiency, and reliability. Its self-priming capability allows it to start quickly without manual water priming, simplifying setup in the field. The sturdy roll frame protects the pump and engine, while its cast-aluminum body and rugged internal components ensure durability even under abrasive conditions.

Key Features

1. Trash-Water Handling
   Designed to pump water that contains debris, sand, or grit — not just clean water.

2. Self-Priming Capability
   Allows quick start-up without manual priming, saving time and effort in field applications.

3. Robust Diesel Engine
   Powered by a reliable Yanmar L-series 320 cc engine, delivering strong power output (4.9 kW) and efficient fuel use.

4. Durable Construction

   • Aluminum die-cast pump casing reduces weight while offering corrosion resistance.

   • Cast iron wear parts (impeller, inner casing) ensure long life even when pumping abrasive fluids.

5. High Performance
   Provides a large flow rate (1,150 L/min) and decent head (27 m) to handle demanding dewatering tasks.

6. Good Suction Capability
   Can lift water from as deep as 7 meters to start pumping.

7. Portable & Field-Ready
   Compact frame dimensions (680 × 484 × 710 mm) and relatively lightweight (76 kg) make it transportable to remote or job-site locations.

8. Fuel Efficiency & Runtime
   13-liter fuel tank enables long operating periods between refuels.

9. Easy Maintenance
   Built for serviceability; Yanmar’s design facilitates access for cleaning, especially important for trash pumps.
